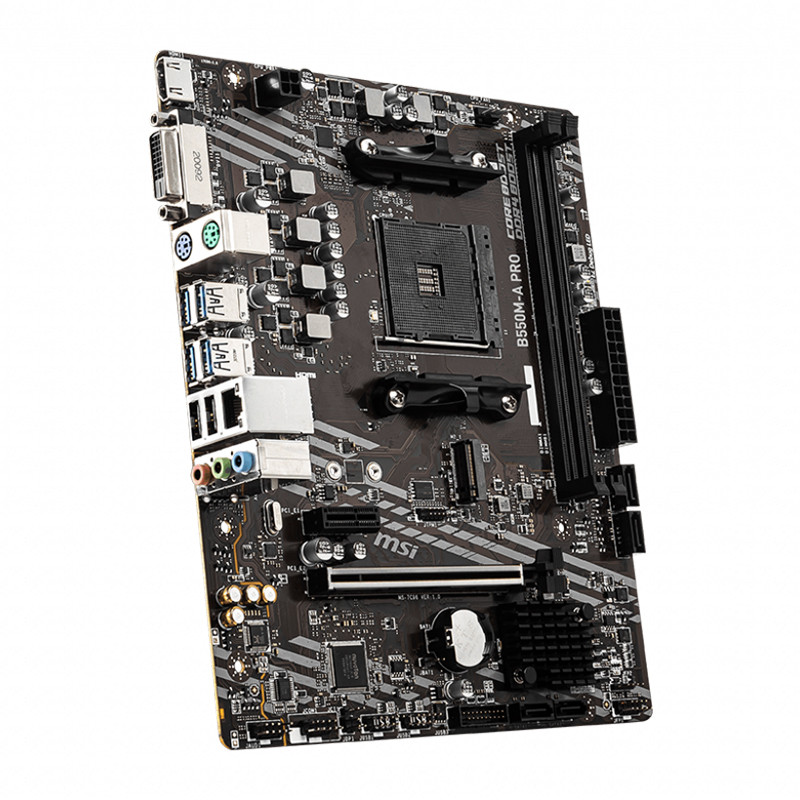

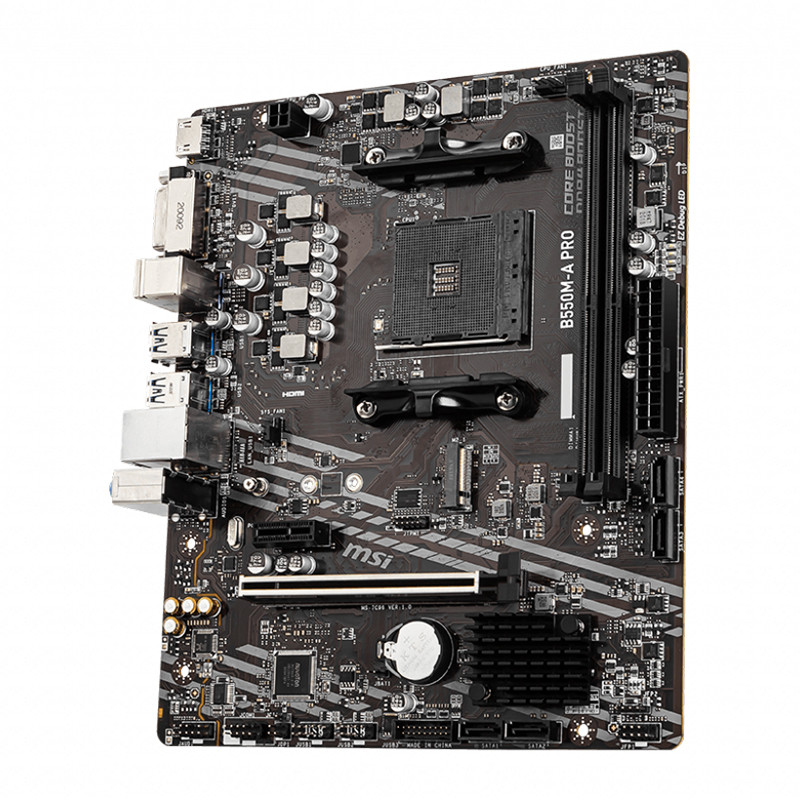

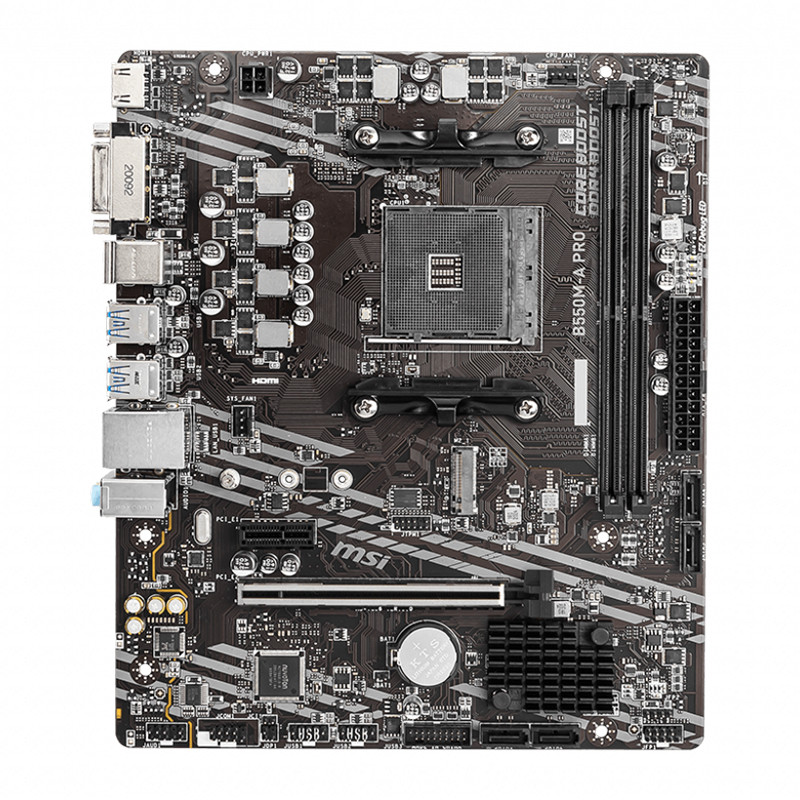

MSI เมนบอร์ด MAINBOARD (AM4) B550M A PRO - A0143383

Brand : MSI

Model : B550M-A PRO

CPU Support : Supports AMD Ryzen™5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™5 3400G & Ryzen™3 3200G) and AMD Ryzen™4000 G-Series desktop processors

Socket : AM4

Chipset : AMD B550

Memory Support : 2x DDR4 memory slots, support up to 64GB

Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC

Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE

Dual channel memory architecture

Supports non-ECC UDIMM memory

Supports ECC UDIMM memory (non-ECC mode)

Supports un-buffered memory

Please refer www.msi.com for mor

Memory Type : DDR4

Memory Bus : 1866 / 2133 / 2400 / 2667 / 2800 / 2933 / 3000 / 3066 / 3200 MHz

Memory Slot : 2 Slots

Graphics : 1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz

Support HDCP 1.4 & 2.3

1x DVI-D port, supports a maximum resolution of 1920x1200@60Hz1

Maximum shared memory of 16 GB

Multi Graphic Support : None

Audio : Realtek° ALC892/ALC897 Codec

Expansion Slots : 1x PCIe 3.0 x1 slot

1x PCIe 4.0/3.0 x16 slot

Storage : 4x SATA 6Gb/s ports

1x M.2 slot (Key M) (from AMD Processor)

RAID

Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices

Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

USB : AMD B550 Chipset

2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 5Gbps connector

6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)

AMD Processor

4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel

Internal I/O Connectors : 1x 24-pin ATX main power connector

1x 4-pin ATX 12V power connector

4x SATA 6Gb/s connectors

1x M.2 slots (M-Key)

1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)

2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)

1x 4-pin CPU fan connector

1x 4-pin system fan connectors

1x Front panel audio connector

2x System panel connectors

1x Chassis Intrusion connector

1xTPM module connector

1x Clear CMOS jumper

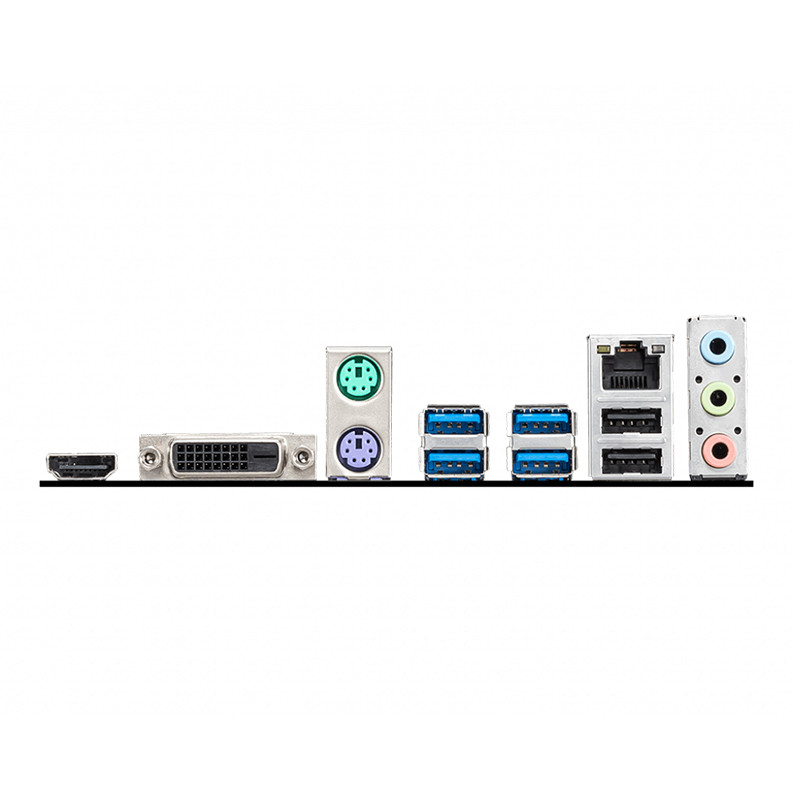

Back Panel Connectors : 1x LAN port

1x HDMI

1x DVI-D

2x Keyboard / Mouse

4x USB 3.2 Gen 1 5Gbps Type-A

2x USB 2.0 Ports

3x Audio Connectors

LAN : 1x Realtek° RTL8111H Gigabit LAN controller

Wireless Data Network : None

Form Factor : Micro-ATX Form Factor

H/W Monitoring : N/A

BIOS : N/A

Special Features : N/A

Software Features : N/A

Operating System Support : Windows 10 64-bit

Package Dimension (W x D x H) : 25.90 x 26.00 x 5.50 cm

Gross Weight : 0.73

Volume : 3,703.70

ประกัน : 3 ปี
