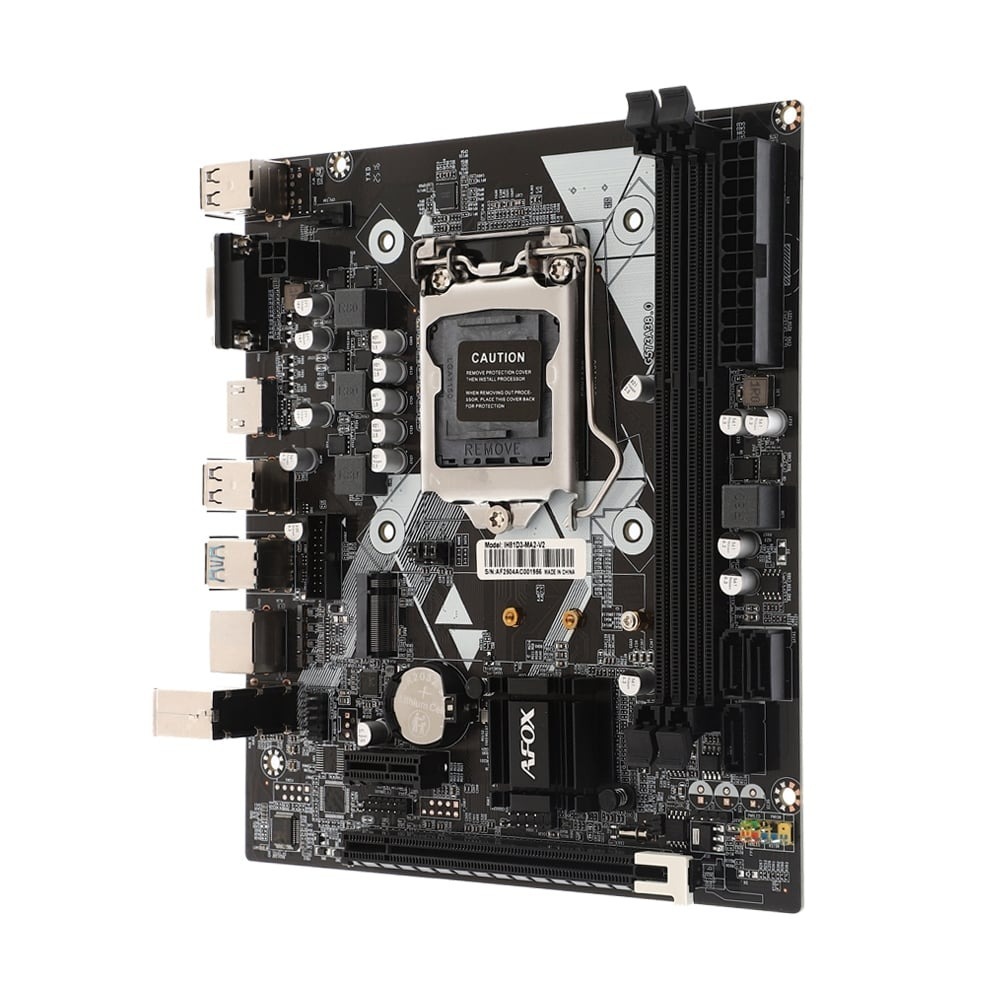

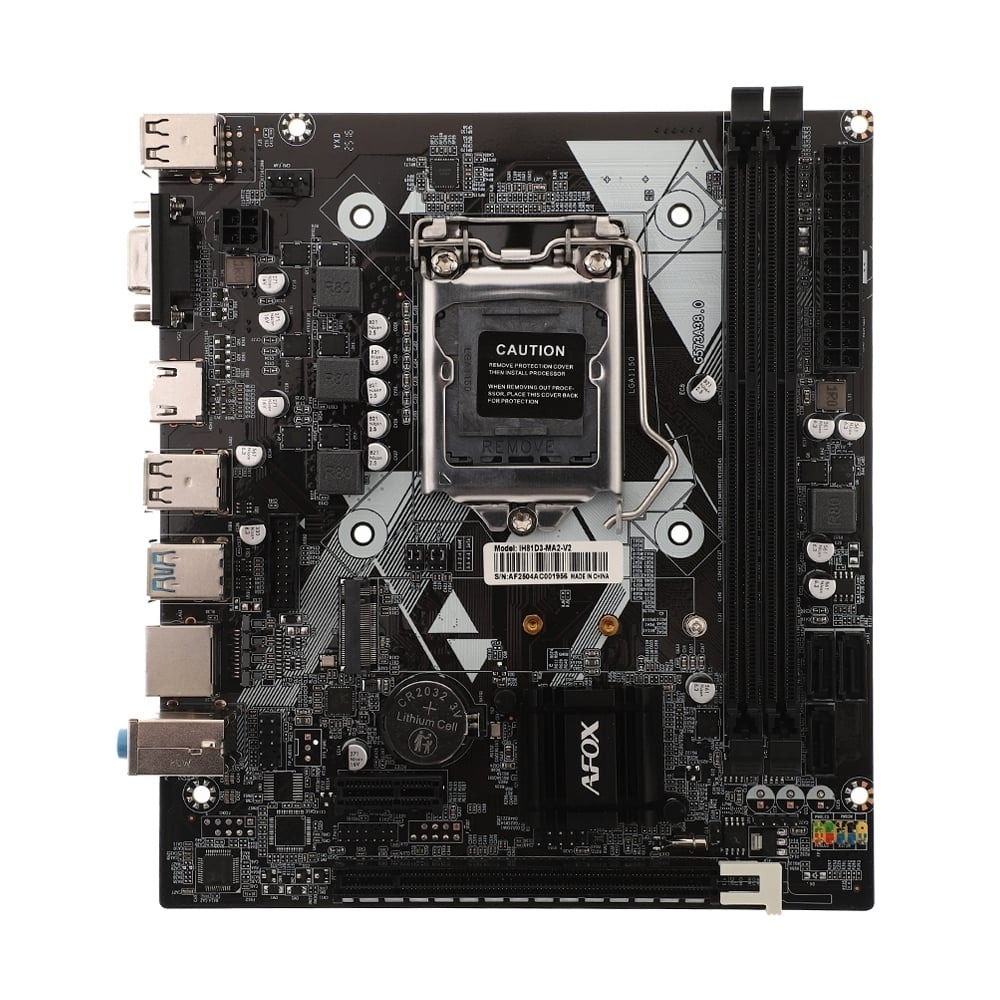

AFOX MAINBOARD (1150) IH81D3-MA2-V2 DDR3 - A0171068

Brand AFOX

Model IH81D3-MA2-V2 DDR3

CPU Support

Intel 4th generation Core™ i7 / Core™ i5 / Core™ i3 / Pentium® / Celeron® / Xeon® Processors (CPU up to 95 watts)

CPU Brand

Intel

Socket

1150

Chipset

Intel H81

Memory Support

2 x Memory Slots (Max. capacity of system memory 16GB)

Dual Channel DDR3 1066 / 1333 / 1600 / 1860MHz

Maximum Memory Bus

1860

Graphics

Integrated Graphics Processor

1 x HDMI Port

1 x D-Sub (VGA) Port

Multi Graphic Support

None

Audio

Supports 6-channel audio-out

Expansion Slots

1 x PCI Express x16 2.0 slot

1 x PCI Express x1 slot

Maximum PCIe Version

PCIe 2.0

Storage

1 x M.2 (PCIe NVMe Gen3 x4 & SATA3)

3 x SATA3

M.2 Storage Type Support

NVMe, SATA

M.2 Slot

1

USB

1 x USB 2.0 pinheader (supports additional 2 USB 2.0s)

1 x USB 3.0 pinheader (supports additional 2 USB 3.0s)

2 x USB 3.0 Ports

4 x USB 2.0 Ports

Internal I/O Connectors

1 x USB 2.0 pinheader (supports additional 2 USB 2.0s)

1 x USB 3.0 pinheader (supports additional 2 USB 3.0s)

1 x Front Panel Audio pinheader

1 x TPM

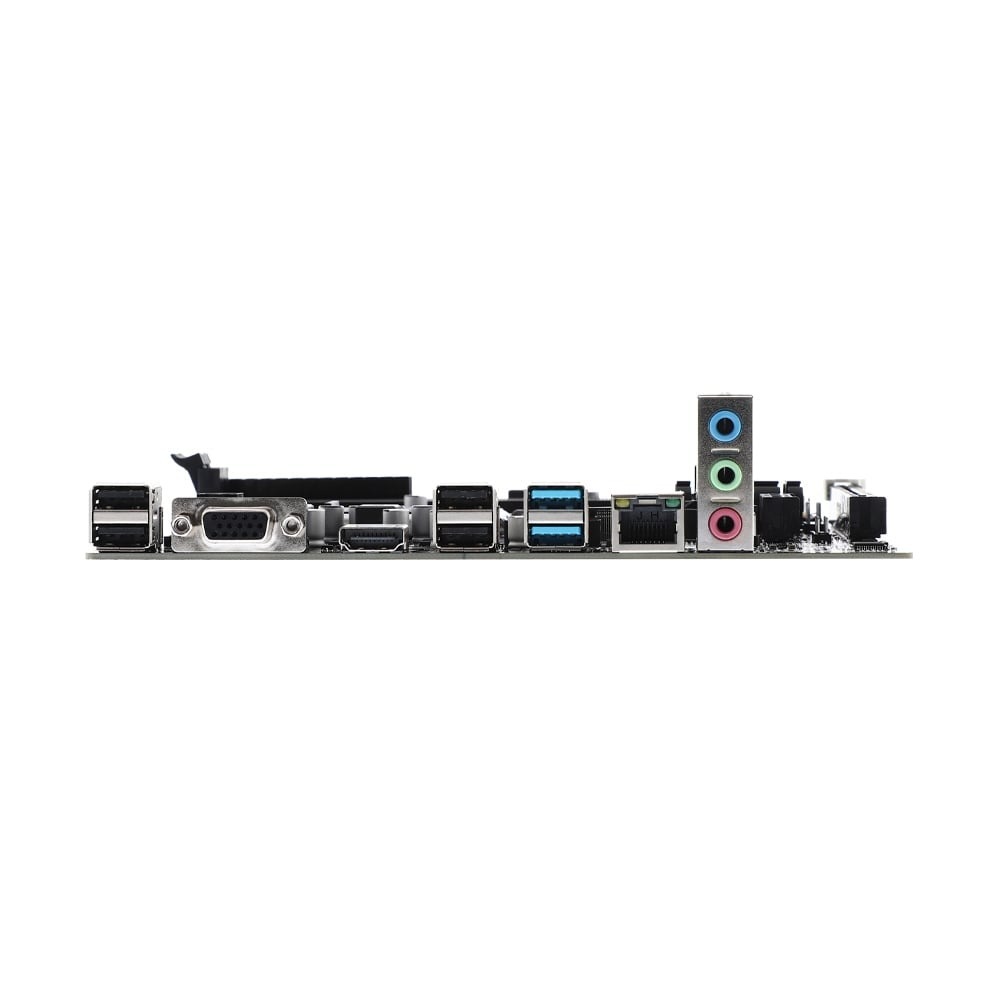

Back Panel Connectors

1 x HDMI Port

1 x D-Sub (VGA) Port

2 x USB 3.0 Ports

4 x USB 2.0 Ports

1 x RJ-45 LAN Port with LED

3 x HD Audio Jacks (Line in / Front Speaker / Microphone)

LAN

Realtek RTL8111 Gigabit Ethernet on board

Wireless Data Network

None

Form Factor

Micro ATX

H/W Monitoring

N/A

BIOS

UEFI BIOS

Special Features

N/A

Software Features

N/A

Operating System Support

Microsoft Windows 8 compatible

Package Contents

1 x SATA II cable

1 x I/O Rear Panel

1 x User Manual

1 x Driver CD

Package Dimension (W x D x H) 22.3 x 27.5 x 5 cm

Gross Weight 0.62 KG

Volume 3066.25 cm3
