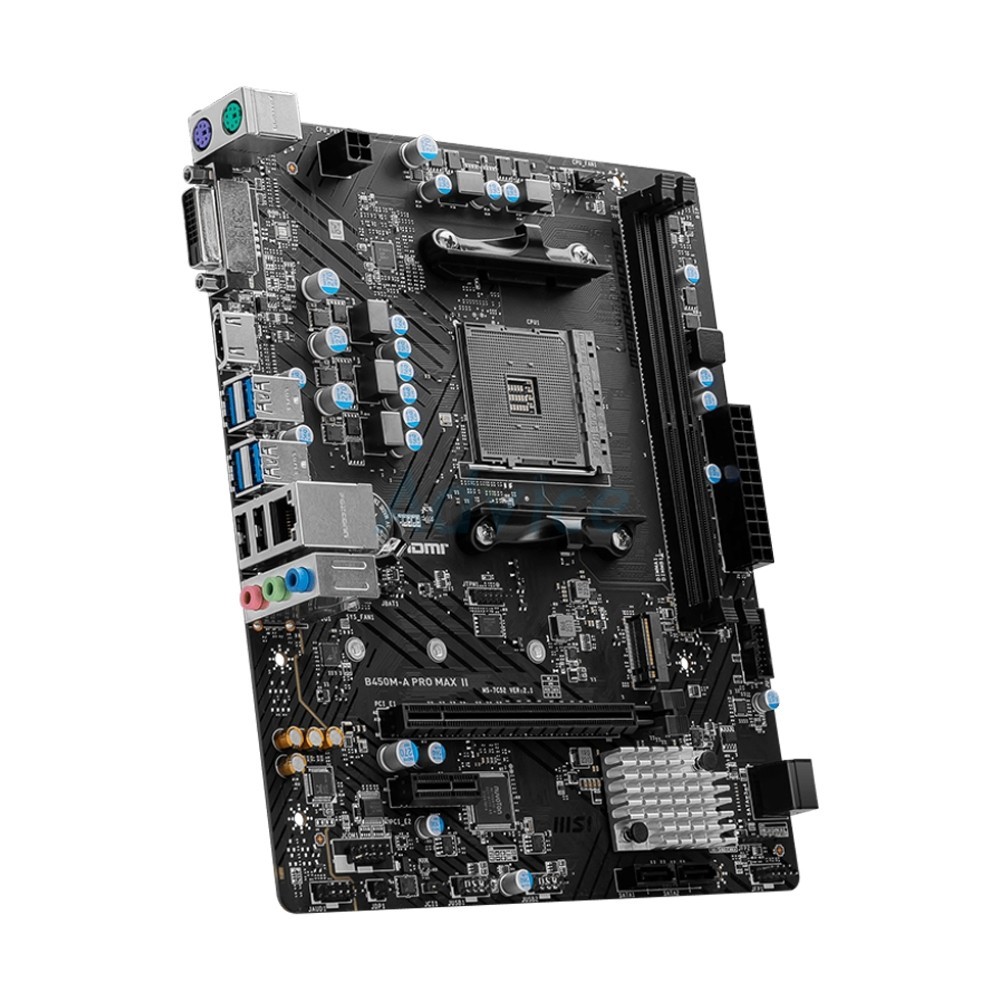

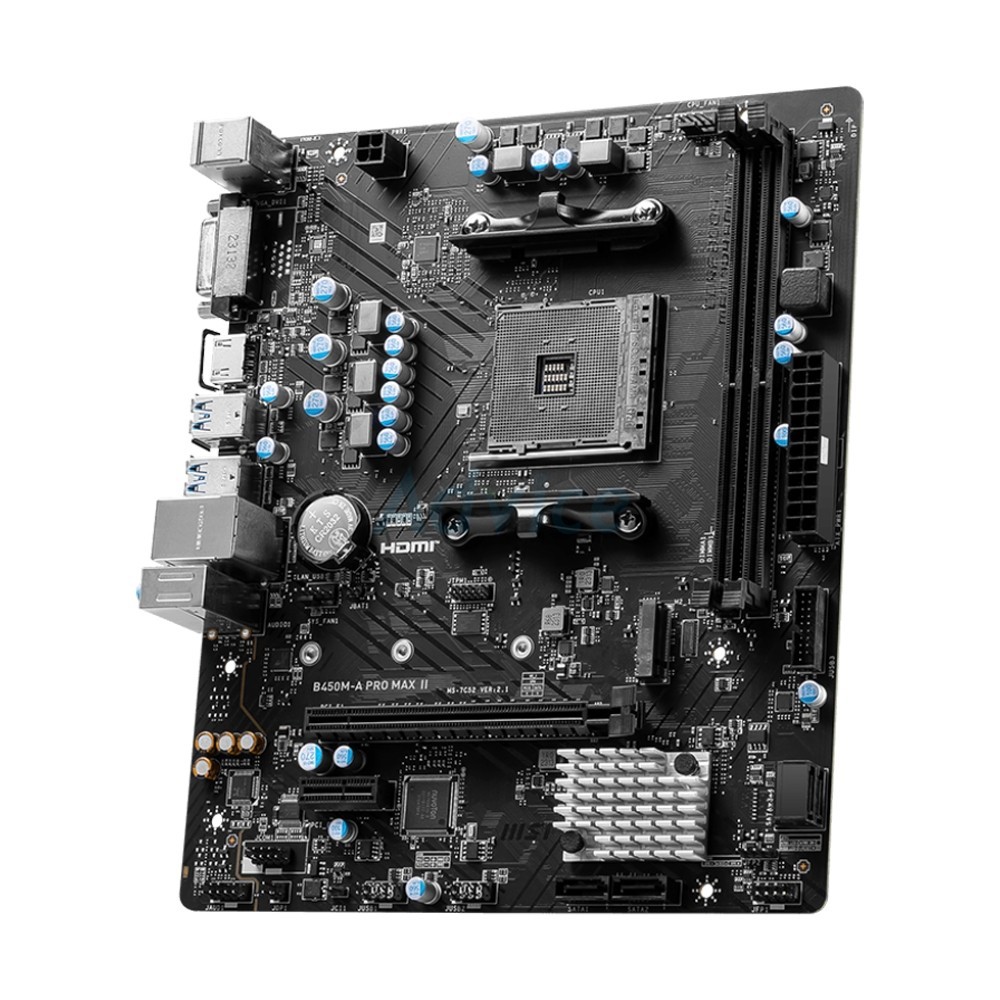

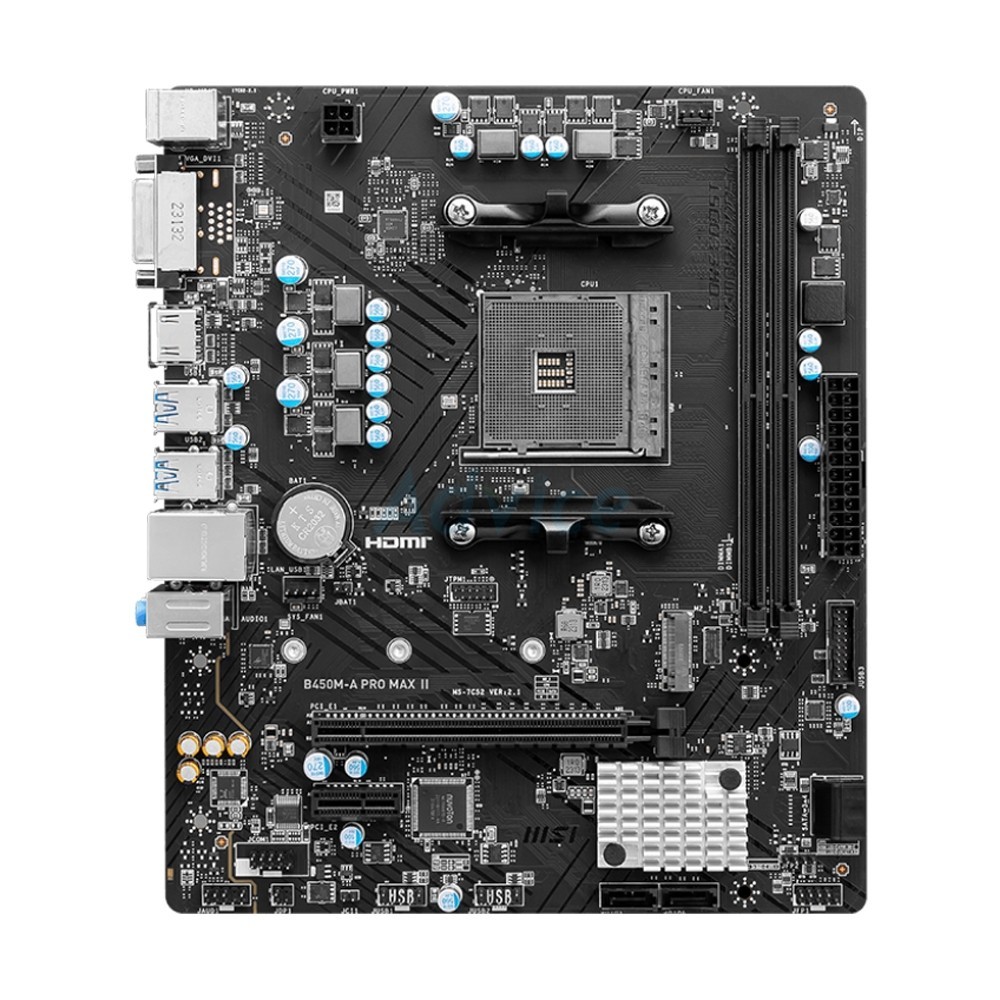

MSI (AM4) B450M A PRO MAX II - A0160324

Brand : MSI

Model : B450M A PRO MAX II

CPU Support : Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series, 2000 G-Series and 1000 Series Desktop Processor and Athlon™ with Radeon™ Vega Graphics desktop processors

Socket AM4

CPU Brand : AMD

Socket : AM4

Chipset : AMD B450

Memory Support : 2x DDR4, Maximum Memory Capacity 64GB

Memory Support DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133 MHz (by A-XMP OC MODE)

Supports Dual-Channel mode

Supports non-ECC, UDIMM memory

Supports ECC UDIMM memory (non-ECC mode)

Supports un-buffered memory

Maximum Memory Bus : 4133

Graphics : 1 x HDMI™

Support HDMITM 2.0b, maximum resolution of 4K 60Hz*

1 x DVI

Support DVI-D, maximum resolution of 1920x1200 60Hz

Multi Graphic Support : None

Audio : Realtek® ALC897 Codec

Expansion Slots : 1 x PCI-E x16 slot

1 x PCI-E x1 slot

PCI_E1 Gen PCIe 3.0 supports up to x16 (From CPU)

PCI_E2 Gen PCIe 2.0 supports up to x1 (From Chipset)

Maximum PCIe Version : PCIe 3.0

Storage : 1 x M.2

M.2_1 Source (From CPU) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices

4 x SATA 6G

Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices

M.2 Storage Type Support : NVMe, SATA

M.2 Slot : 1

USB : 2 x USB 2.0 (Rear)

4 x USB 2.0 (Front)

4 x USB 5Gbps Type A (Rear)

2 x USB 5Gbps Type A (Front)

Internal I/O Connectors : 1 x Power Connector(ATX_PWR)

1 x Power Connector(CPU_PWR)

1 x CPU Fan

1 x System Fan

2 x Front Panel (JFP)

1 x Chassis Intrusion (JCI)

1 x Front Audio (JAUD)

1 x Com Port (JCOM)

1 x TPM pin header(Support TPM 2.0)

4 x USB 2.0 ports

2 x USB 5Gbps Type A ports

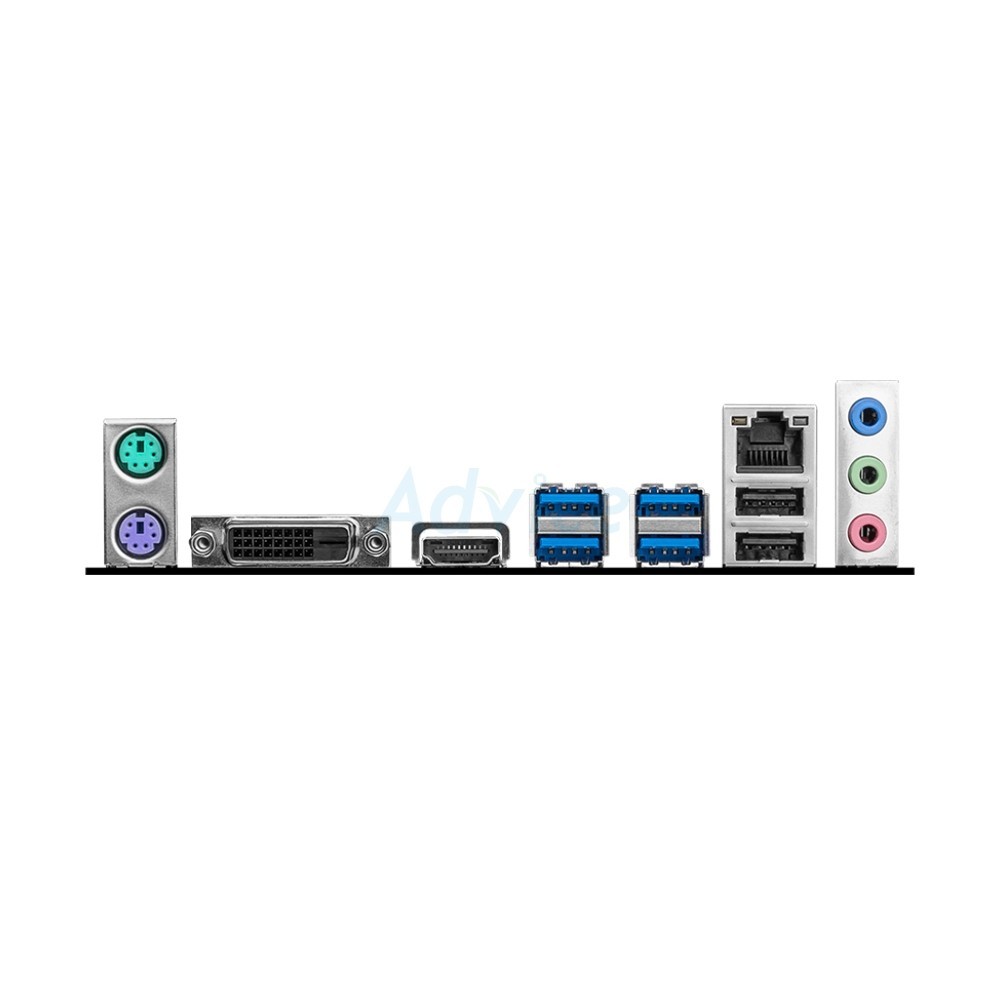

Back Panel Connectors : 1 x DVI-D

1 x HDMI™

2 x USB 2.0

4 x USB 3.2 Gen 1 5Gbps (Type-A)

1 x 2.5G LAN

Audio connectors

Keyboard/Mouse

LAN : Realtek® 8125 2.5Gbps LAN controller

Wireless Data Network : None

Form Factor : Micro ATX

H/W Monitoring : N/A

BIOS : N/A

Special Features : N/A

Software Features : N/A

Operating System Support : Support for Windows® 11 64-bit, Windows® 10 64-bit

Package Contents : N/A

Dimension (W x D x H) : 20.00 x 23.60 x 0.00 cm

Net Weight : 0.00

Package Dimension (W x D x H) : 0.00 x 0.00 x 0.00 cm

Gross Weight : 0.00

Volume : 0.00

ประกัน : 1095
